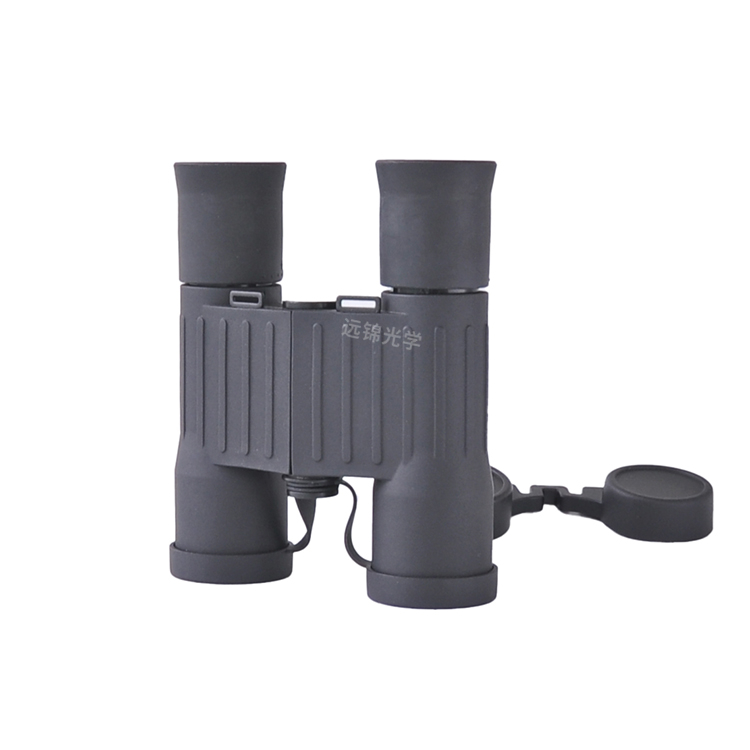

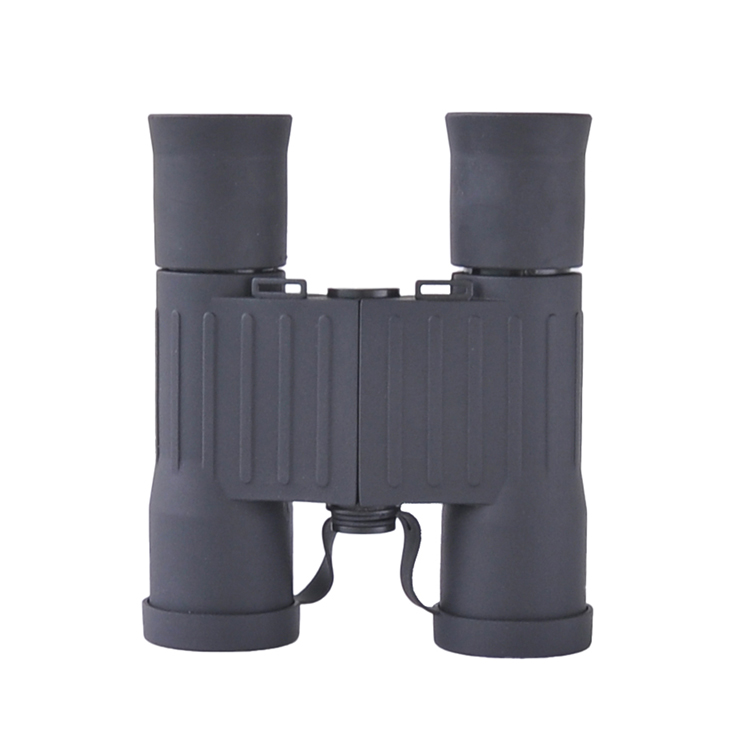

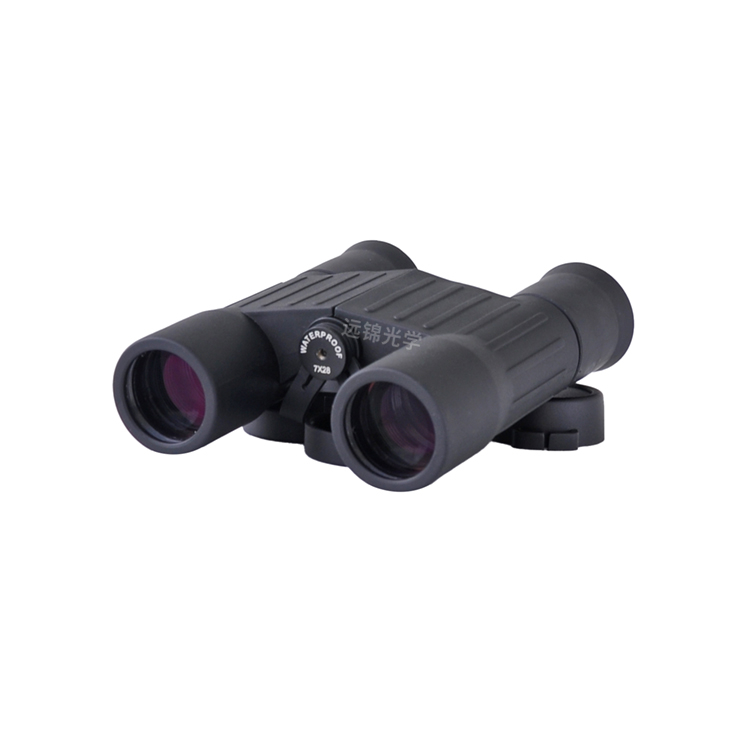

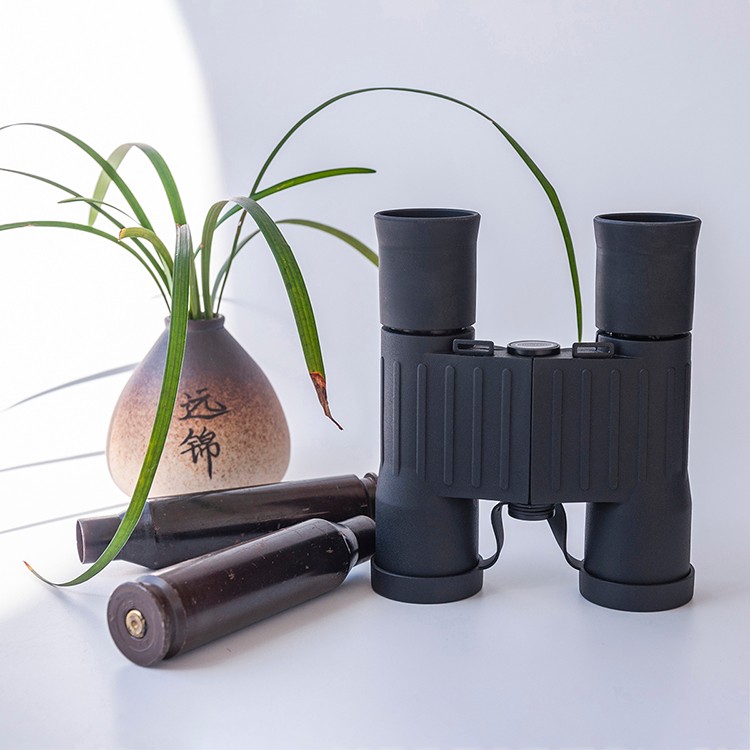

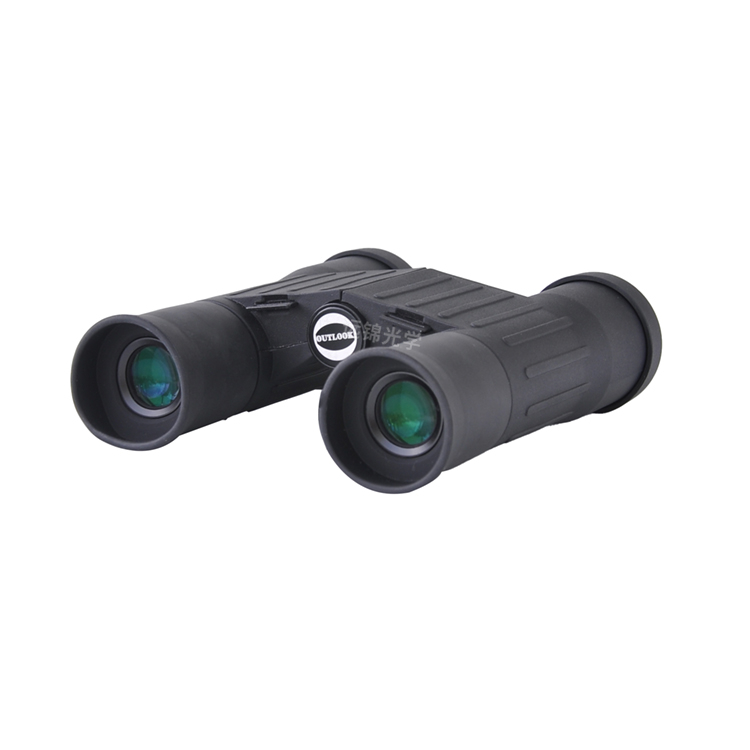

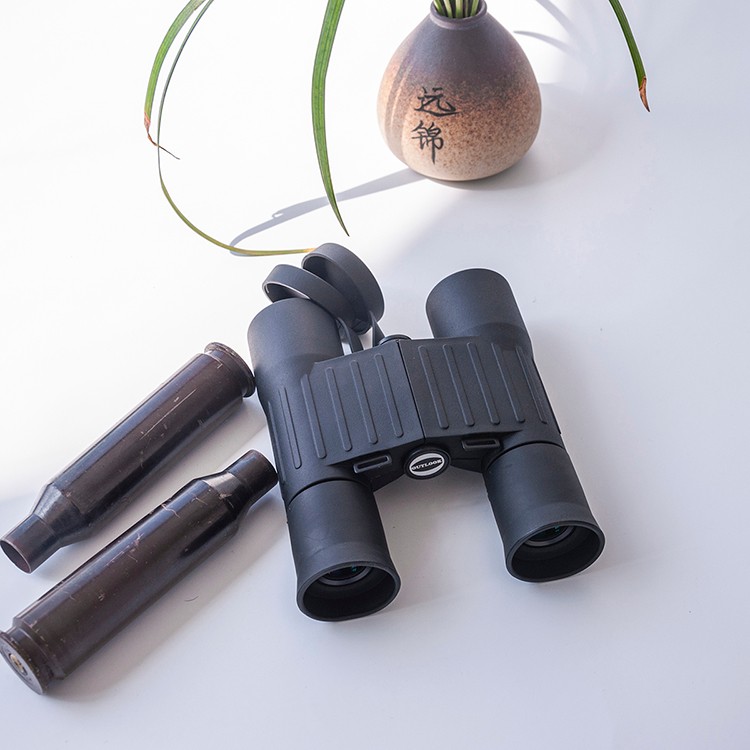

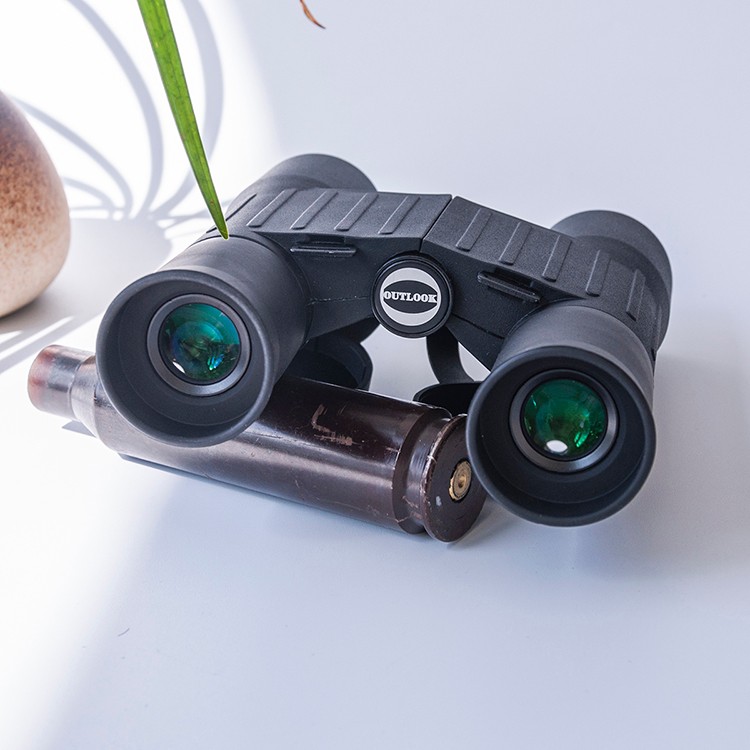

M24 7x28 High Grade Mini Compact Binoculars
M24 7x28 mini binoculars is a compact binoculars with the smallest volume and the lightest weight. This mini binoculars uses the roof prism, which has more difficult production process. The imaging is clear and sharp. YJM728 compact binoculars uses high-grade BAK4 optical glass prism and large eyepieces. This compact binoculars is also shock-proof, waterproof, anti-fog.
High-performance features of M24 7x28 binoculars:
■M24 7x28 mini binoculars is significantly smaller and lighter than standard binoculars.
It is pocket-size, fit for both onshore and offshore uses.
■Rubber pads and rubber-coated focus knob for secure grip and sure handling.
■Durable,shock-resistant and waterproof design to withstand the rigors of frequent outdoor use.

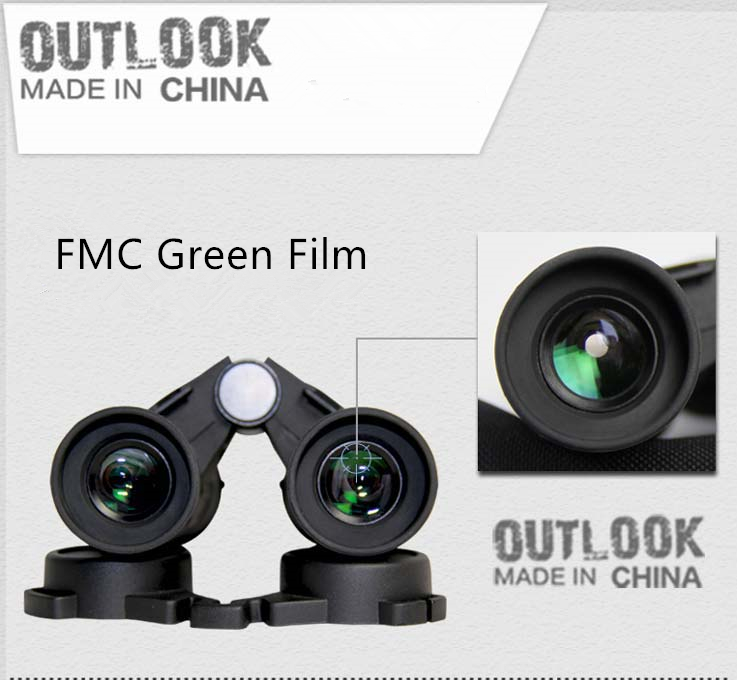

■Broadband green film, independent focusing.
■High grade Roof prism BAK4 optical glass, providing a clear and sharp image, with good color rendition.
■With aluminum magnesium alloy material, M24 compact binoculars features a robust body with rubber armoring for protection against impacts and weather.
■Build in reticle in left side of tube. There are international standard mi-line on the reticle, which can be used for approximate ranging and Angle measurement.
Product applications:
The M24 7x28 compact binoculars is designed for security applications and features high-quality optics. Its small size and surprisingly good image quality make it a popular choice for those who value portability, especially army and law enforcement personnel, and security system personnel. The M24 7×28 mini binoculars is a "pocket-sized" binoculars that is widely distributed. At the same time, due to its high waterproof performance, the M24 is also suitable for marine observation and can be used on ocean sailboats and motorboats. Its rugged design and mechanics also make it suitable for general outdoor activities. The field of view is good. We are OEM, product quality is guaranteed, and the advantages are great.
Product Specifications:
Specification | 7X28 |
Brand | Outlook |
Magnification | 7 |
Poor magnification | 2% |
Exit pupil diameter (mm) | 4.1mm |
Field of view | ≥6°28′ |
Weight (g) | 560g |

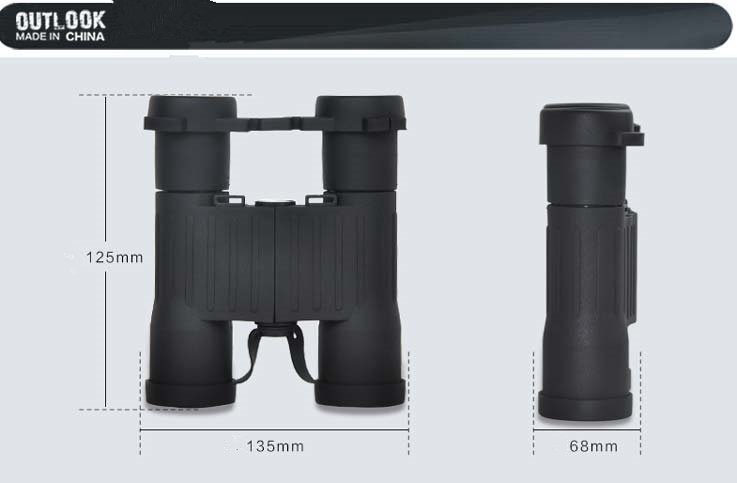

Overall dimensions (mm) | 135×125×68(mm) |
Mirror band (width) | 9mm～13mm |
Mirror tape (length) | 970mm-1120mm |
Mirror strap | Withstand 9kg |
Location of the board | Mounted in the center of the left eyepiece field of view |
Location of the board | The installation distance is 62mm to 64mm |
Eye distance (minimum) | ≤58mm |
Eye distance (Max.) | ≥72mm |
Horizontal divergence | ≤ 40′ |
Vertical direction (before vibration) | ≤ 30′ |
Horizontal convergence | ≤ 3′ |
Horizontal divergence | ≤ 40′ |
Vertical direction (after vibration) | ≤ 30′ |
Horizontal convergence | ≤ 3′ |
Exit pupil distance | 9mm～22mm |
Inspection rate (center of view) | ≤9″ |
Relative tilt | ≤1° |
mini binoculars is a compact binoculars
