PVS-14 Objective Lens Eyepiece Assembly

Night Vision Optical Lenses PVS-14 Objective Lens Eyepiece Assembly

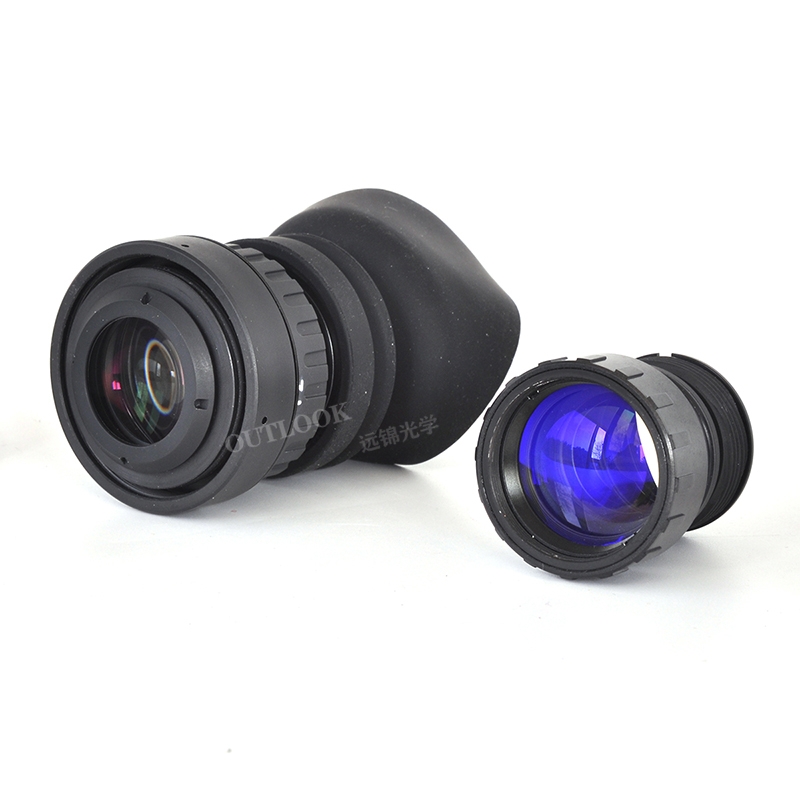

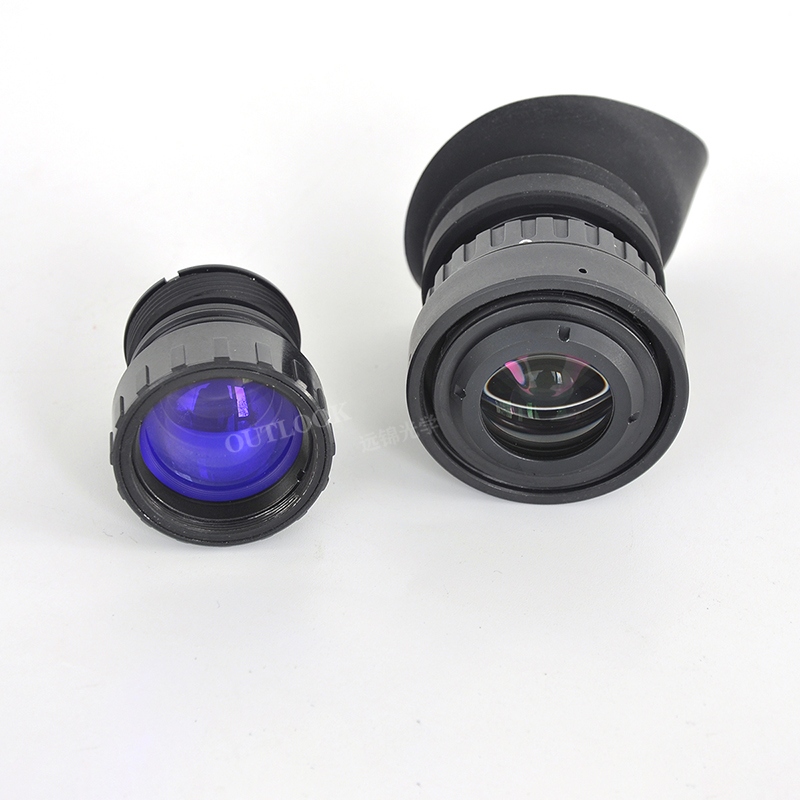

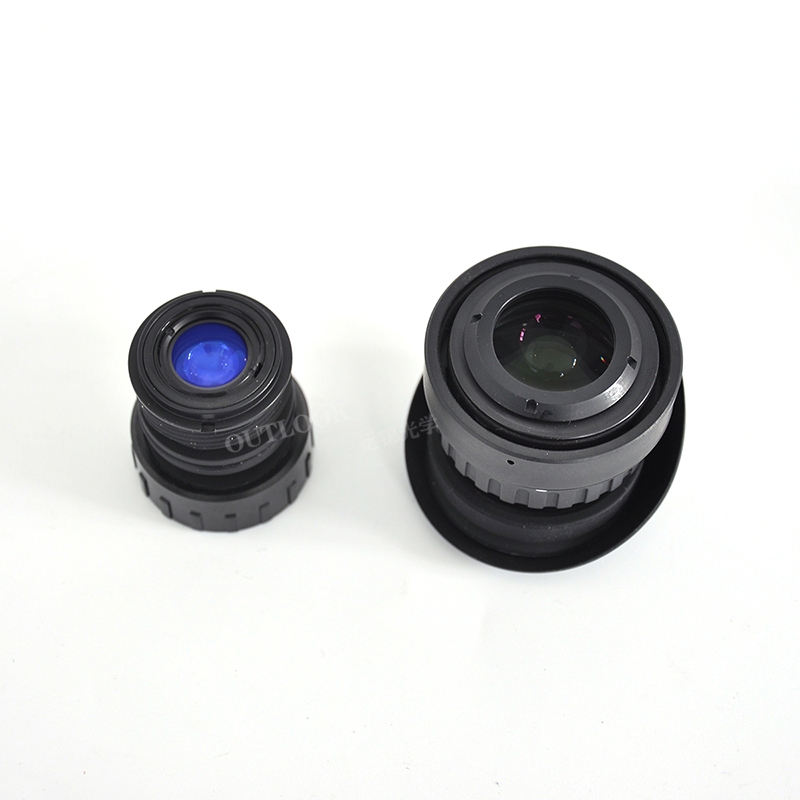

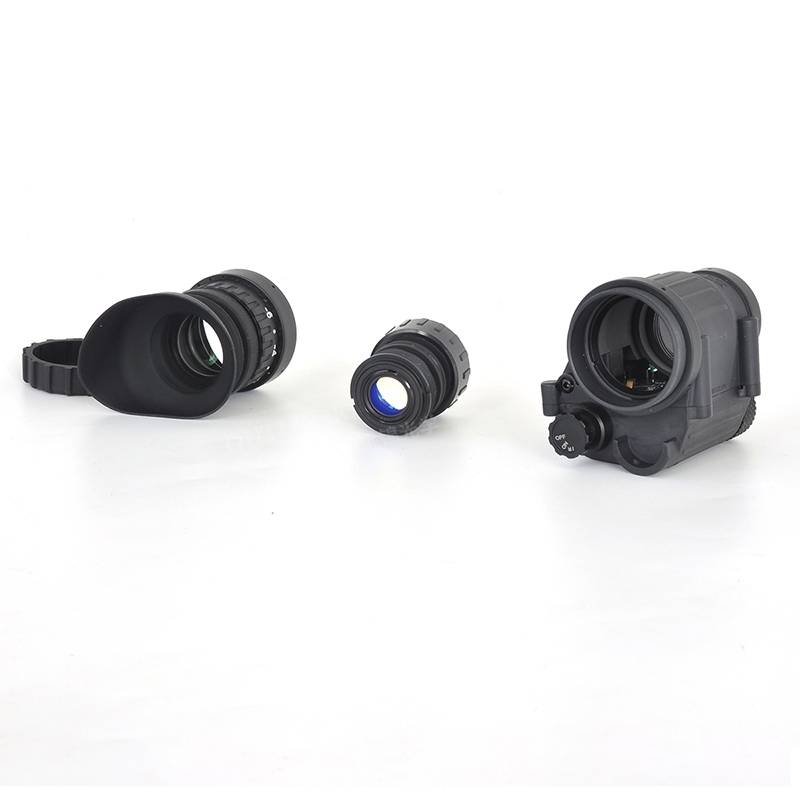

The pvs14 lenses group includes pvs-14 objective lens and pvs-14 eyepiece. pvs-14 objective lens and pvs-14 eyepiece assembly is a high-performance universal optical lens that can be adapted to international standard night vision products such as PVS14, PVS31, PVS-7, etc. Adopting imaging designs with equivalent effects to L3 and Carson, the excellent image quality of the pvs 14 lenses assembly can fully enhance the performance of the image intensifier tubes.

Features of pvs14 optical lens :
1, high resolution; 2, small distortion; 3, light weight; 4, high versatility and so on;

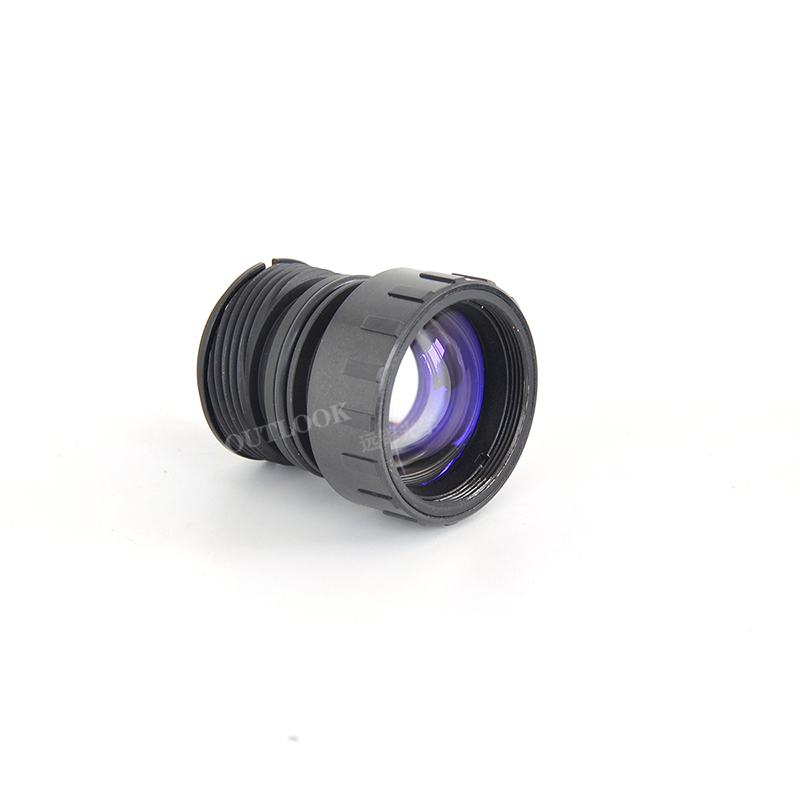

pvs-14 objective lens features and advantages

Features of pvs-14 objective lens

Large diameter design: PVS-14 objective lens has a larger diameter. The larger diameter can collect more light, and in low-light environments, it can allow more light to enter the device, thereby improving the brightness and clarity of the image.

Short focal length: PVS-14 objective lens have a short focal length, which helps to expand the field of view, allowing users to see a wider area, enhance the peripheral field of view, and facilitate rapid search for targets.

Multi-layer coating of PVS-14 optical lens: The surface of the objective lens adopts multi-layer coating technology, which can effectively reduce the reflection and scattering of light on the surface of the lens, reduce glare, increase light transmittance, and reduce the loss of light entering the device, thereby improving the image quality.

Advantages of pvs 14 optical lens

Excellent low-light performance of PVS-14 optical lens: The combination of large diameter and multi-layer coating of pvs 14 optical lens make the objective lens perform well in low-light environments such as night and dusk. Even in very weak light conditions, it can provide sufficient light for the subsequent image enhancement system to ensure the clarity and brightness of the image.

Broad field of view of PVS-14 optical lens: The large field of view brought by the short focal length allows users to cover a larger area without frequently turning the device during observation, which improves the efficiency of search and monitoring, especially in scenes such as field patrols and security monitoring.

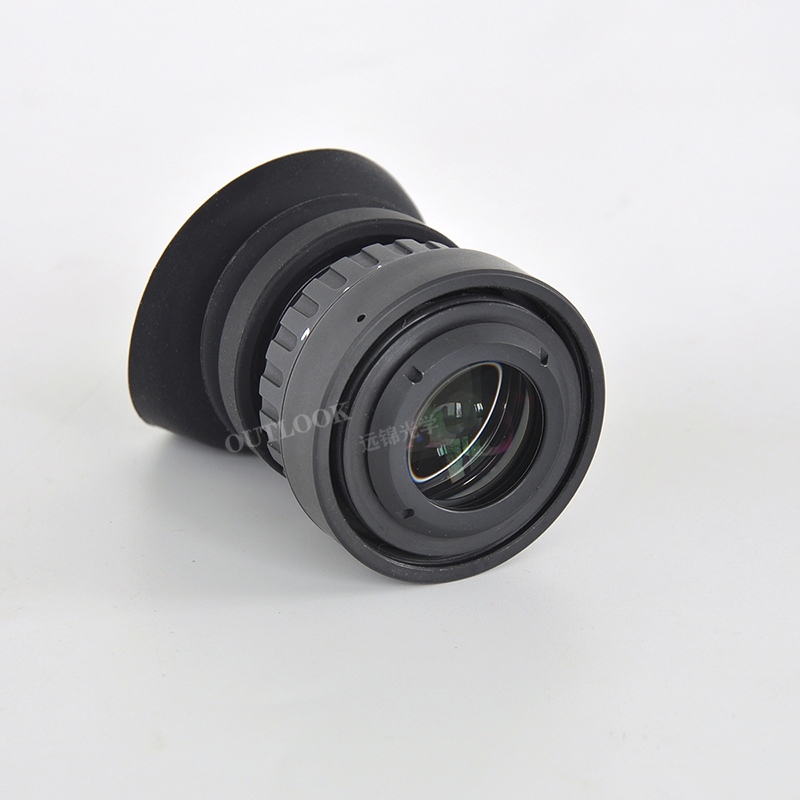

Features and advantages of pvs 14 lenses eyepiece

Features  of pvs 14 lenses eyepiece

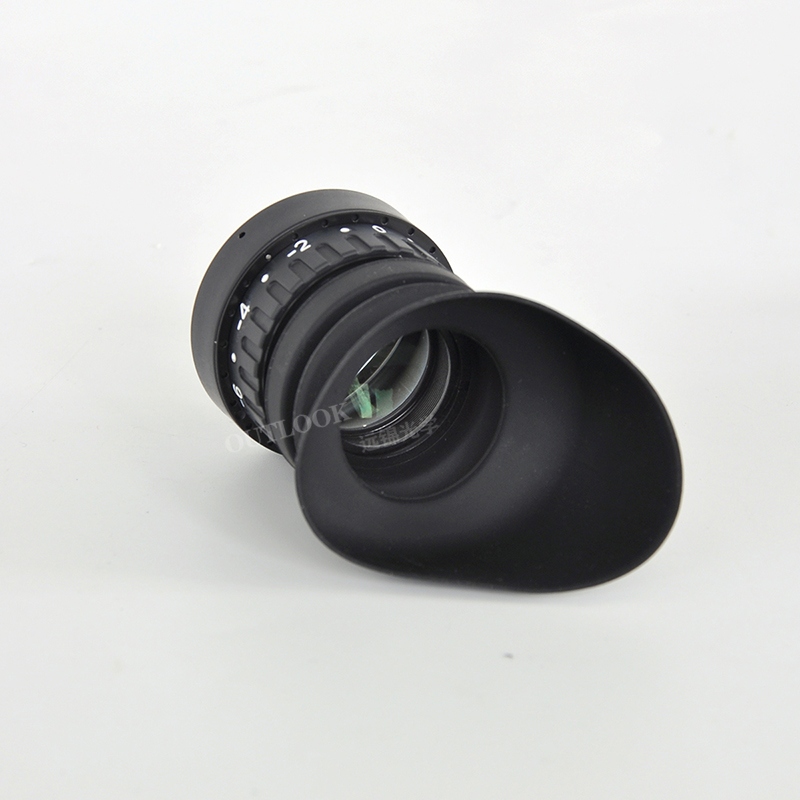

Diopter adjustment of pvs 14 lenses eyepiece: The eyepiece has a diopter adjustment function. This function can adapt to users with different vision levels, allowing each user to adjust the eyepiece to make the image clearly appear in front of the eyes without wearing additional glasses for observation.

Reasonable pupil distance of pvs 14 lenses eyepiece: The pupil distance is 25 mm. This distance can ensure that the user's eyes can still observe comfortably close to the eyepiece when wearing goggles and other equipment, and will not affect the observation effect due to too close or too far distance.

High resolution: The optical design of the eyepiece ensures a high resolution, which can clearly present the image details transmitted by the objective lens, allowing users to distinguish more subtle target features.

Advantages of pvs 14 lenses eyepiece

Personalized visual experience: The diopter adjustment function of pvs 14 lenses eyepiece meets the vision needs of different users, provides a personalized visual experience, and enables each user to obtain a clear and comfortable observation effect.

Comfortable wearing: The reasonable pupil distance design of pvs 14 lenses eyepiece allows users to not feel eye fatigue during long-term observation, which improves the comfort and sustainability of use.

Clear imaging: The high-resolution of pvs 14 lenses eyepiececan restore the image details captured by the objective lens to the greatest extent, helping users to identify targets more accurately and provide a more reliable basis for decision-making.

pvs 14 lenses optical lens pvs 14 lenses optical lens
