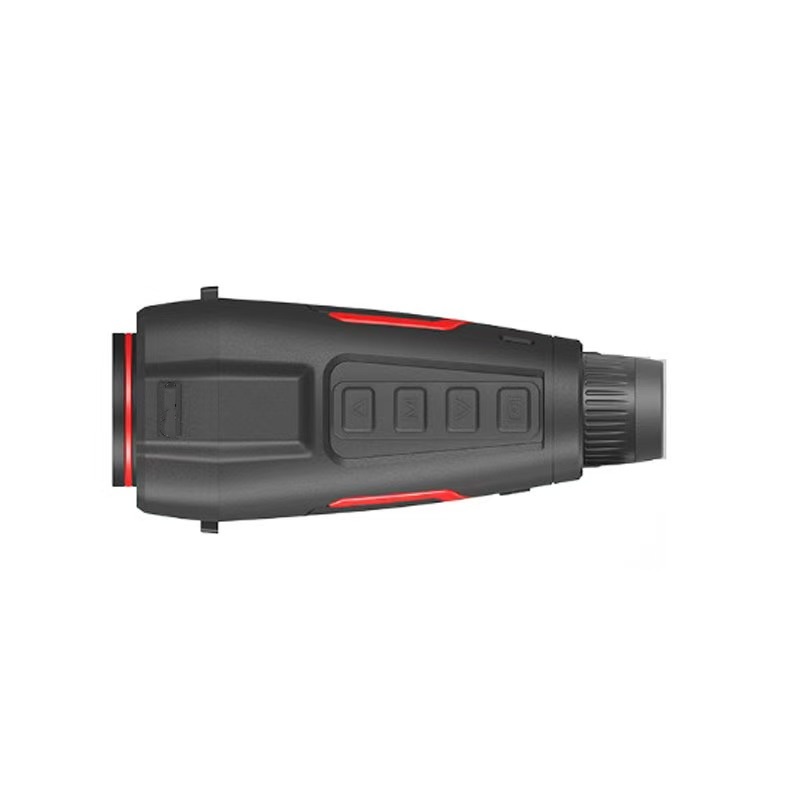

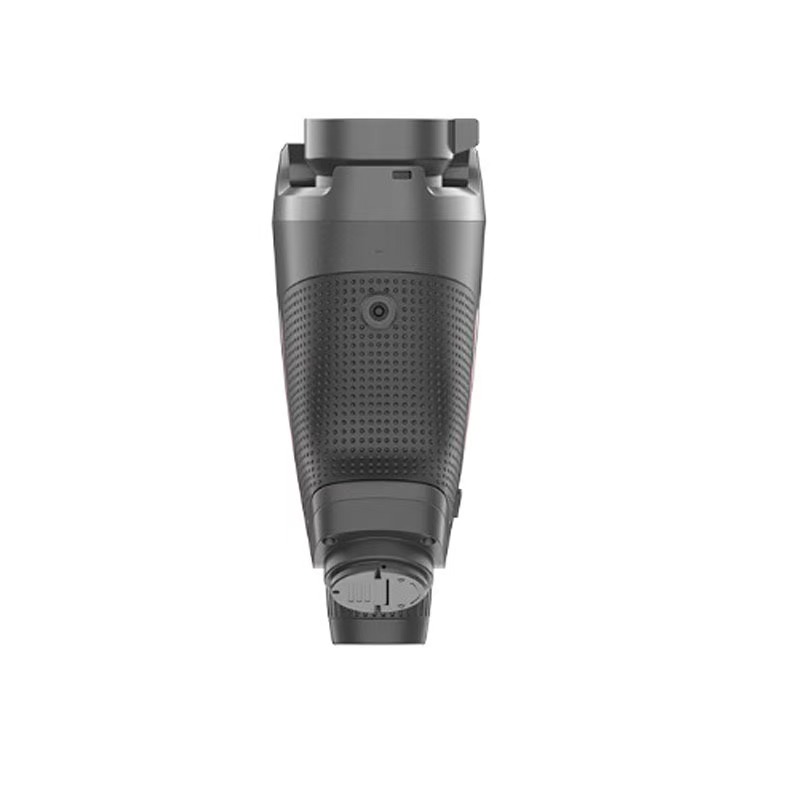

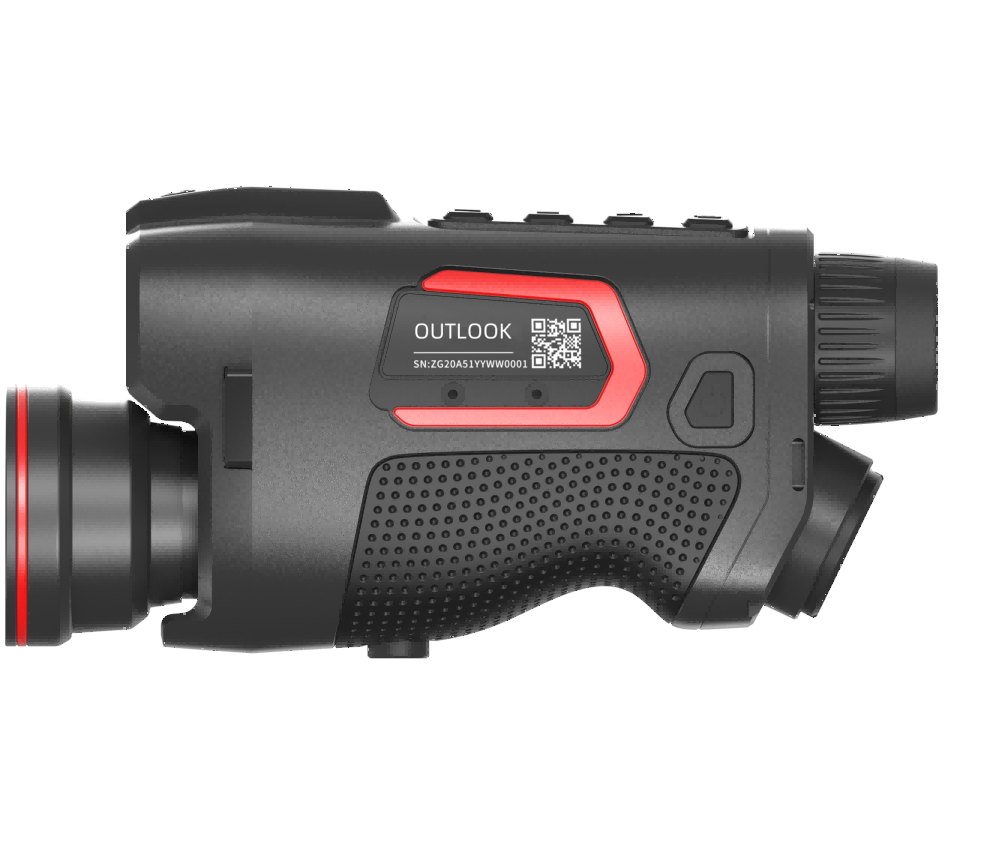

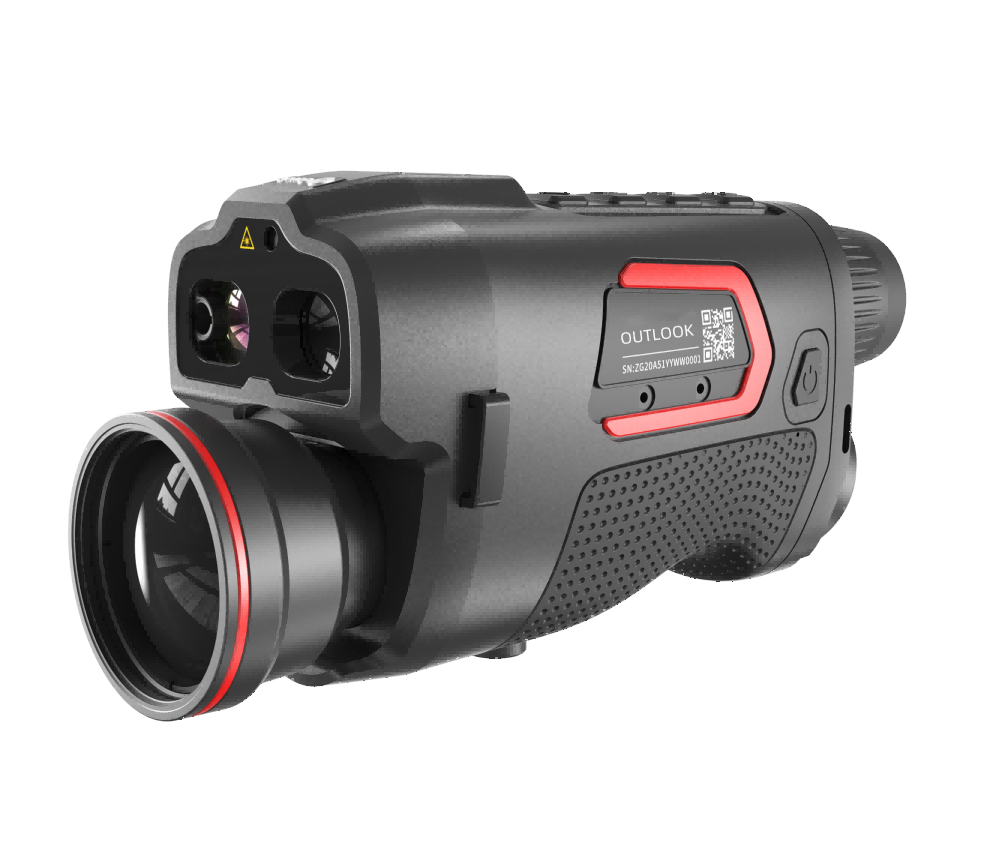

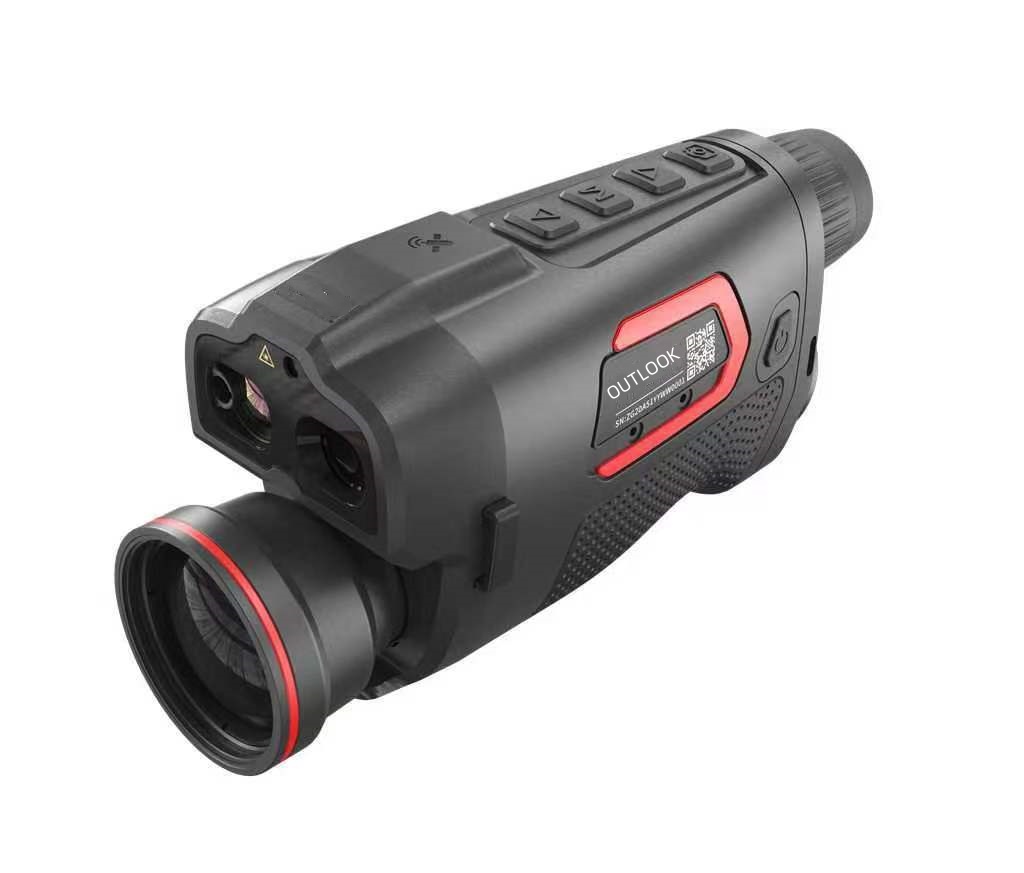

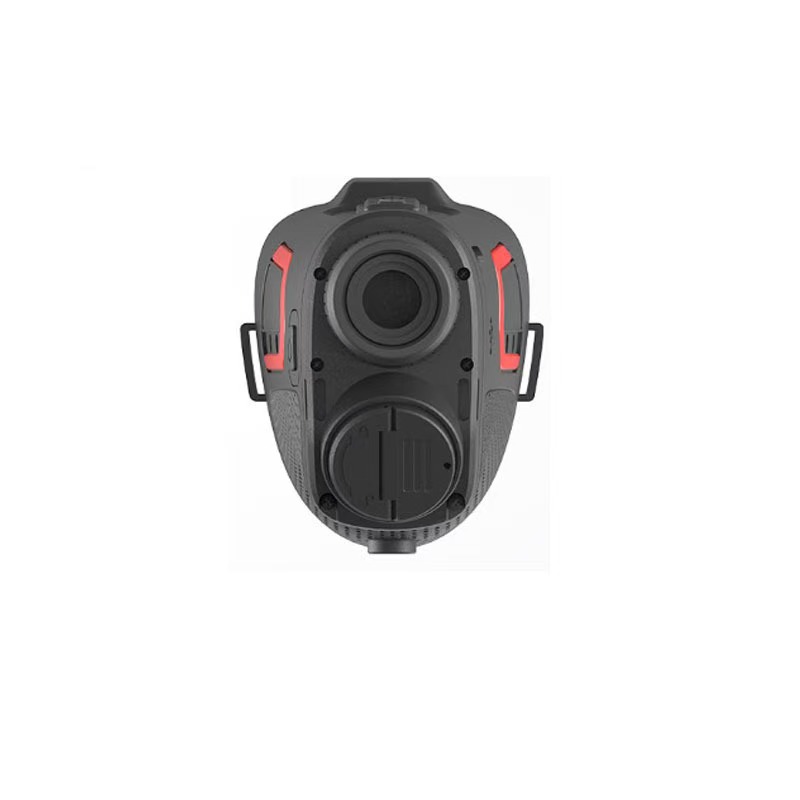

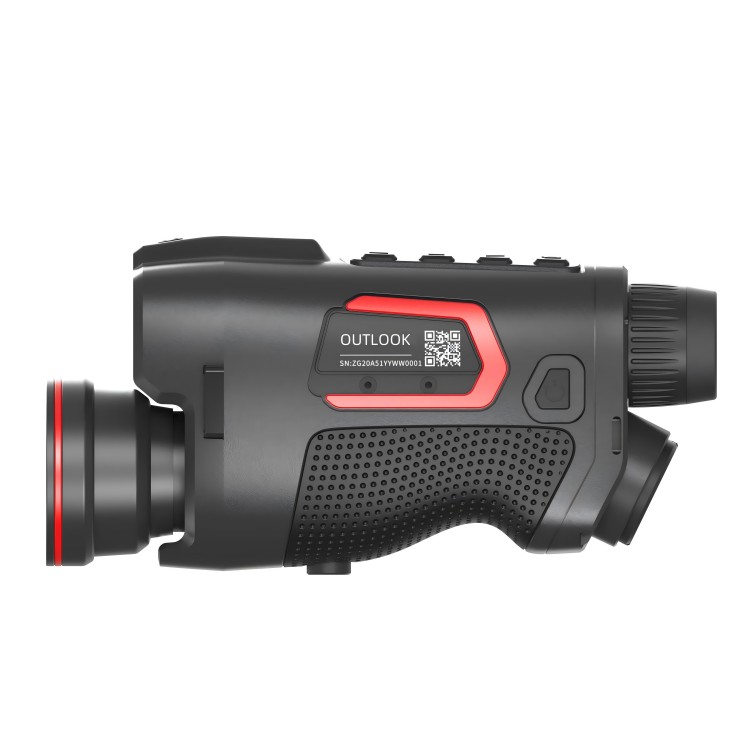

YJRS thermal vision monocular night vision goggles with thermal
YJRS thermal vision monocular is a multi-light fusion infrared thermal imaging device that integrates infrared, visible light, and laser ranging. This night vision goggles with thermal meet the needs of outdoor all-weather and all-scene observation. YJRS thermal vision
monocular is equipped with a 12μm high-sensitivity infrared detector, a 1920×1080 low-light CMOS sensor, and a 1920×1080 AMOLED display, supplemented by a unique image fusion mode, to achieve excellent imaging and delicate display effects. At the same time, this fusion infrared thermal imaging device equipped with a built-in laser rangefinder, electronic compass, gyroscope, and GPS to help users search, observe, and locate targets faster and
better.
Product Features
*Day and night use: infrared thermal imaging + visible light, easily achieve 24-hour all-weather observation.
*Image fusion: multiple image fusion modes, the target can be highlighted even in complex scenes.
*Target positioning: innovative target positioning function, accurately obtain GPS information of observed targets.
*Laser ranging: one-click ranging, the maximum distance is 600 meters, and the accuracy can reach ±1 meter.
*OTA upgrade: support remote firmware upgrade by connecting to mobile phone APP.
*Outdoor durability: 5 hours of battery life, IP67 dust and water resistance, durable outdoors.
Parameters of this thermal imaging device
产品Model | YJRS-435 | YJRS-450 | YJRS-635 | YJRS-650 |
Sensor | ||||
Type | IR : Vanadium oxide uncooled infrared detector, 8~14μm; Visible light : CMOS | |||
Resolution | IR : 400x300@12μm; Visible light : 1920x1080@4μm | IR : 640x480@12μm; Visible light : 1920x1080@4μm | ||
NETD | 30mK | |||
Frame rate | 50Hz | |||
Lens | ||||
Focal length | IR : 35mm, F1.0; Visible light : 22mm, F1.5 | IR : 50mm, F1.2; Visible light : 22mm, F1.5 | IR: 35mm, F1.0; Visible light : 17mm, F1.4 | IR : 50mm, F1.2; Visible light : 17mm, F1.4 |
FOV | 7.8°x5.9° | 5.5°x4.1° | 12.4°x9.3° | 8.7°x6.6° |
FOV m@100m | 14x10 | 10x7 | 22x16 | 15x12 |
Magnification | 2.3x~9.2x | 3.3x~13.2x | 1.5x~12x | 2.0~16.0x |
Detection range(person) | 1800m | 2600m | 1800m | 2600m |
Display | ||||
Type | 0.39'' AMOLED 1920x1080 | |||
Color | Infrared: white heat, black heat, red heat, iron red, blue heat | |||
Scene mode | Visible light: day, night, twilight | |||
Image model | Infrared, visible light, Fusion 1, Fusion 2, fusion 3 scene modes | |||
Eyepiece | Exit pupil distance 15mm, Diopter -4~+4, Magnification13.8x | |||
Hardware module | ||||
Laser range finder | 600m | |||
Laser designator | 200m | |||
WIFI | 2.4G | |||
Connector | USB Type-C | |||
Others | GPS, Compass, Gyroscope, Bluetooth | |||
System | ||||
Photo/Video | Support | |||
Memory capacity | 64GB | |||
Power supply | ||||
Battery | 18650x1 | |||
Working time | 5 hours | |||
Enviromental parameter | ||||
Operating temperatur | -20°C~50°C | |||
IP Grade | IP67 | |||
Physical data | ||||
Weight(g) | 530 | 567 | 530 | 567 |
Size(mm) | 170x70x90 | 190x70x90 | 180x70x90 | 190x70x90 |
thermal vision monocular night vision goggles with thermal thermal imaging device
