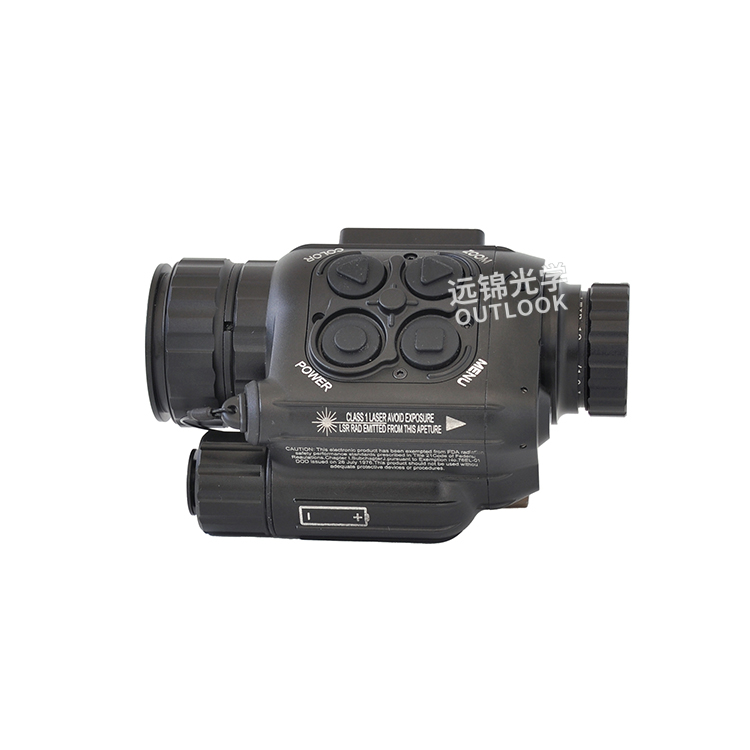

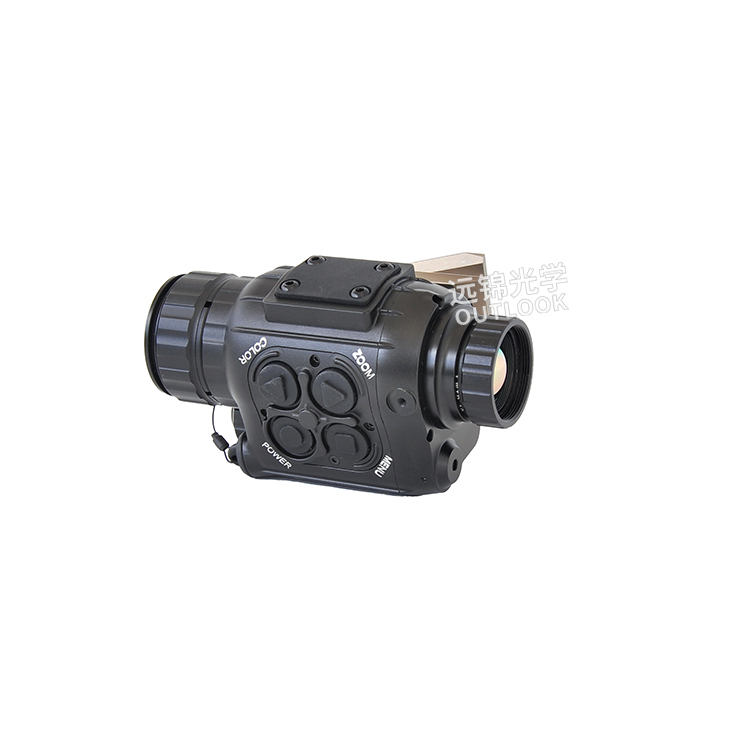

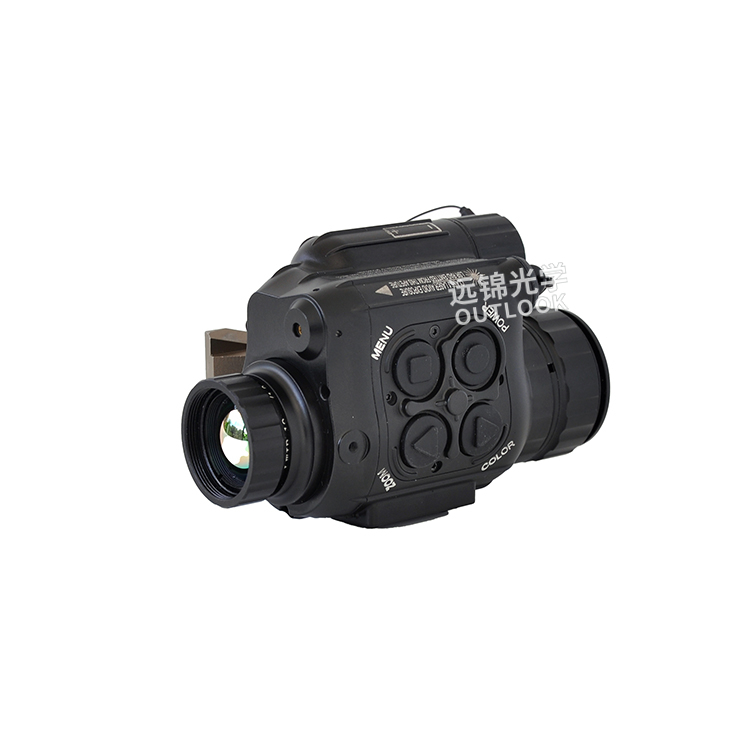

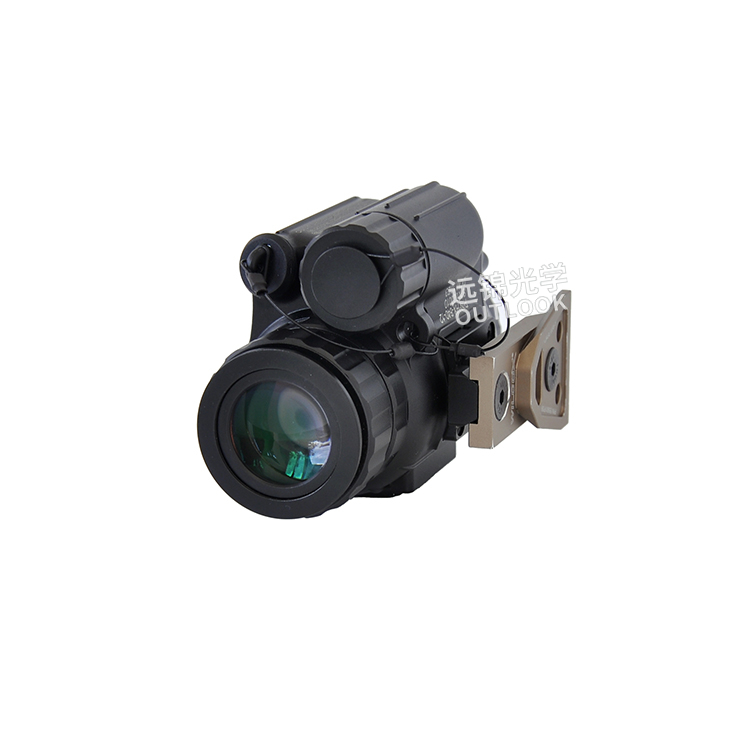

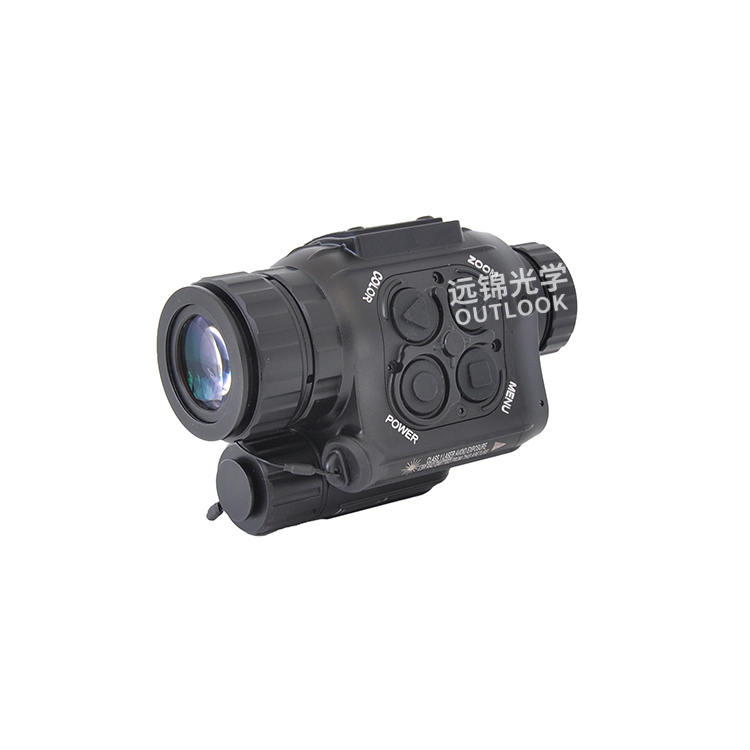

PVS 14 Thermal scope monocular hunting scope for guns
OUTLOOK PVS 14 multi-functional thermal scope monocular has high resolution. With a variety of resolution options, such as 384x288, 640x512 or 640x480, to provide clear thermal imaging images. The PVS14 hunting scope for guns has multiplecolor modes: white heat, black heat and other display modes, to adapt to different environmental needs.

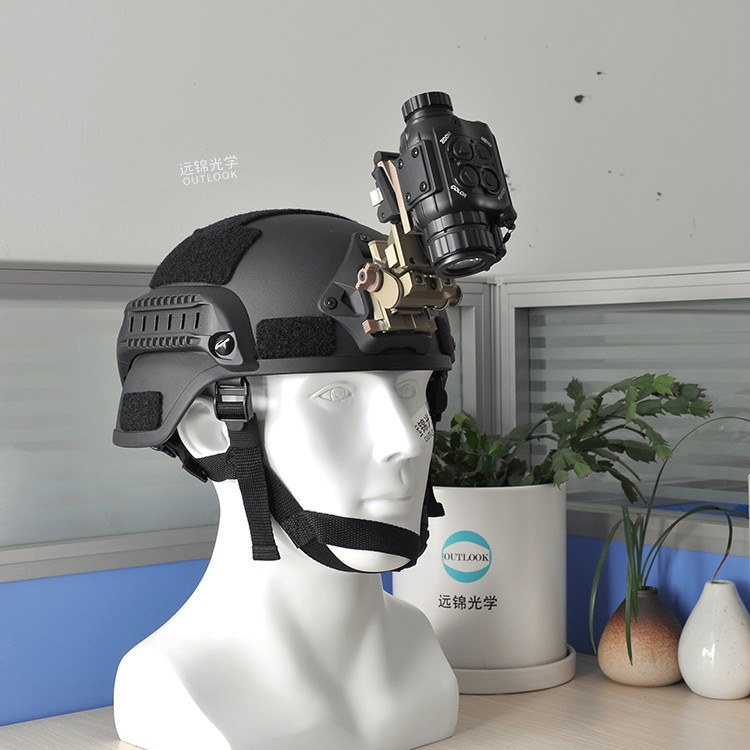

This thermal scope monocular is lightweight and helmet mounted. This scope for guns has strong strong design, able to withstand the impact and vibration of small caliber weapons.
The PVS14 hunting scope for guns is compatible with various rifles. The target highlighting ability is stronger, and the detection distance is longer.
Five application scenarios of the hunting scope
1. Handheld search
2.Tandem Thermal Imaging Scope
3. Standalone Thermal Imaging Scope

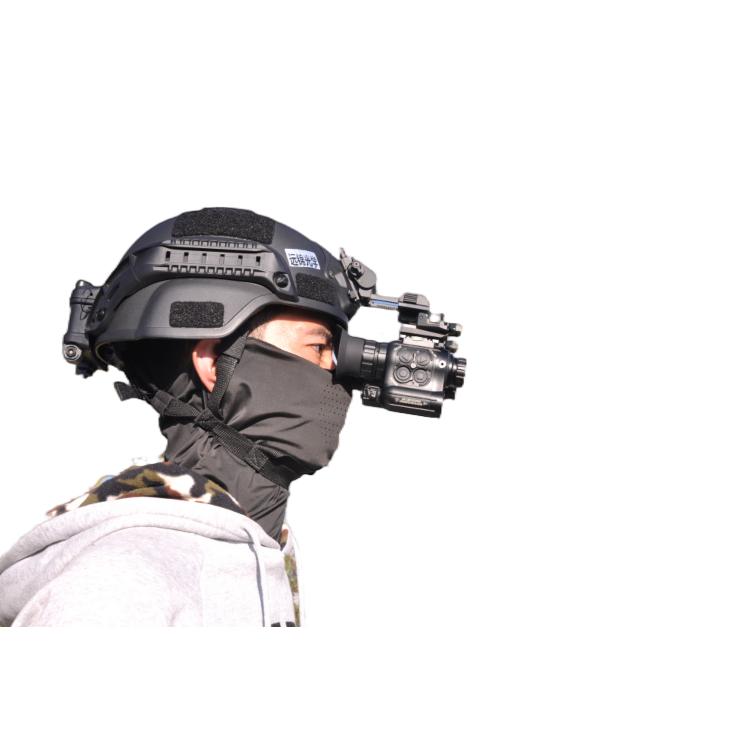

4. Head mounted monocular

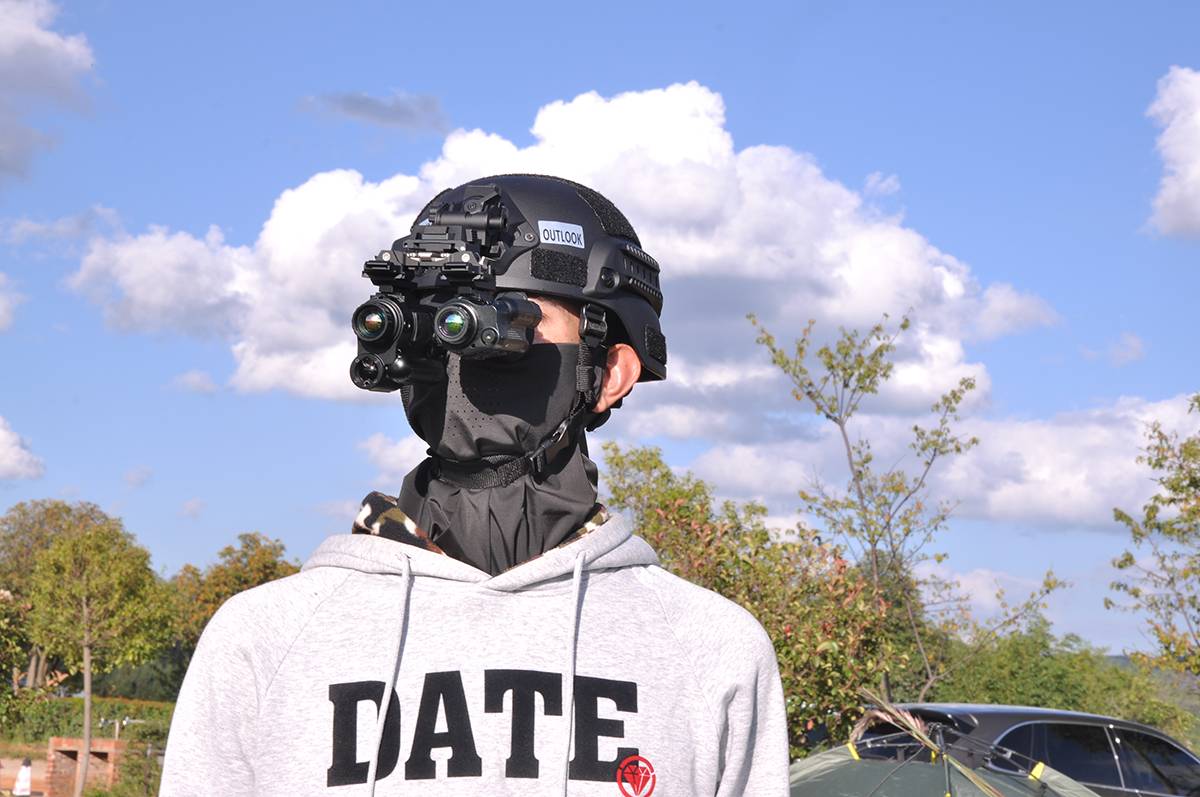

5. Head mounted binoculars
Application field
1. Military field: suitable for special forces and military personnel in the night or low light environment operations and reconnaissance missions.
2. Law enforcement area: This scope for guns can help law enforcement officers conduct search, surveillance and law enforcement operations at night.
3. Hunting area: Easy for hunters to track and hunt prey at night or in bad weather conditions.
4. Outdoor adventure: to provide outdoor lovers with better vision and safety at night.
Product specifications
Specifications | thermal scope monocular | ||
General inf. | Sensor type | Uncooled Vox FPA | |
Resolution | 384x288 | 640x512 | |
Phase element size | 17um | 12um | |
Response band | 8~14um | ||
NETD (noise equivalent temperature difference) | ＜40mk@25°f/1.0 | ＜35mk@25°f/1.0 | |
Refresh rate | 50hz | ||
Lens | 15mm/f1.0 | ||
Field of view | 25°x19° | 29°x23° | |
System | False color mode | White hot, black hot, brown, red hot, iron red, rainbow | |
Digital amplification | 50-400 continuous zoom & 1x, 2x, 4x | ||
Cross reticle | 4 types | ||
Secret bit | 3 types | ||
Cross color | Auto, black, white, red, green, blue | ||
Hotspot tracking | Support | ||
External display | UVC protocol | ||
Laser Ranging | Optional 1200M | ||
Take photos/videos | Optional (400,000 photos/40 hours of video) | ||
Photo in photo | Support | ||
Electronic compass | Optional | ||
Laser red dot | Support | ||
Dead pixel elimination | Support | ||
Uniformity correction | Unblocked correction | ||
OLED size | 0.4 inches | ||
OLED resolution | 1440x1080 | ||
Eyepiece exit pupil | 25mm | ||
Image sharpness enhancement | Support | ||
AGC gain | Foreground auto/background auto/linear | ||
Image flip | Support | ||
Power | Battery | 1 section 18350/18500 can be replaced | |
Battery life | >6H(25°) | ||
USB powered | 5V/2A | ||
Battery reverse polarity protection | Support | ||
Overvoltage protection | Support | ||
Application | Mounting brackets | Wilkes/Picatinny interface | |
Shock vibration | 750g | ||
Operating temperature | -30℃ ~ +60℃ | ||
Storage temperature | -40℃ ~ +70℃ | ||
Protection level | IP67 | ||
Shell material | Aluminum alloy | ||
Size | 108x47x65mm | ||
Weight | 300g | ||
Thermal scope monocular hunting scope for guns Hunting scope
