Image intensifier tube gen 3 night vision goggles

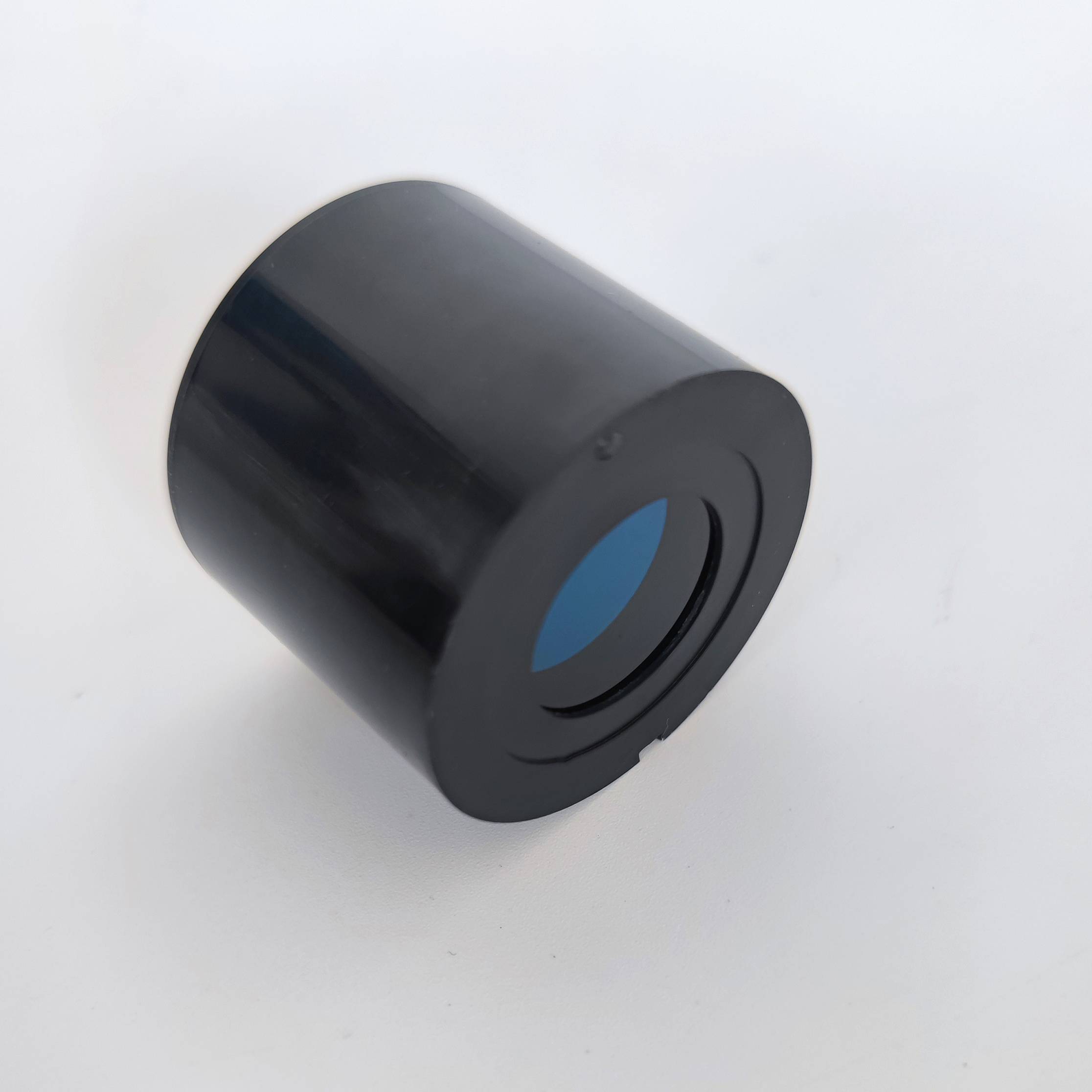

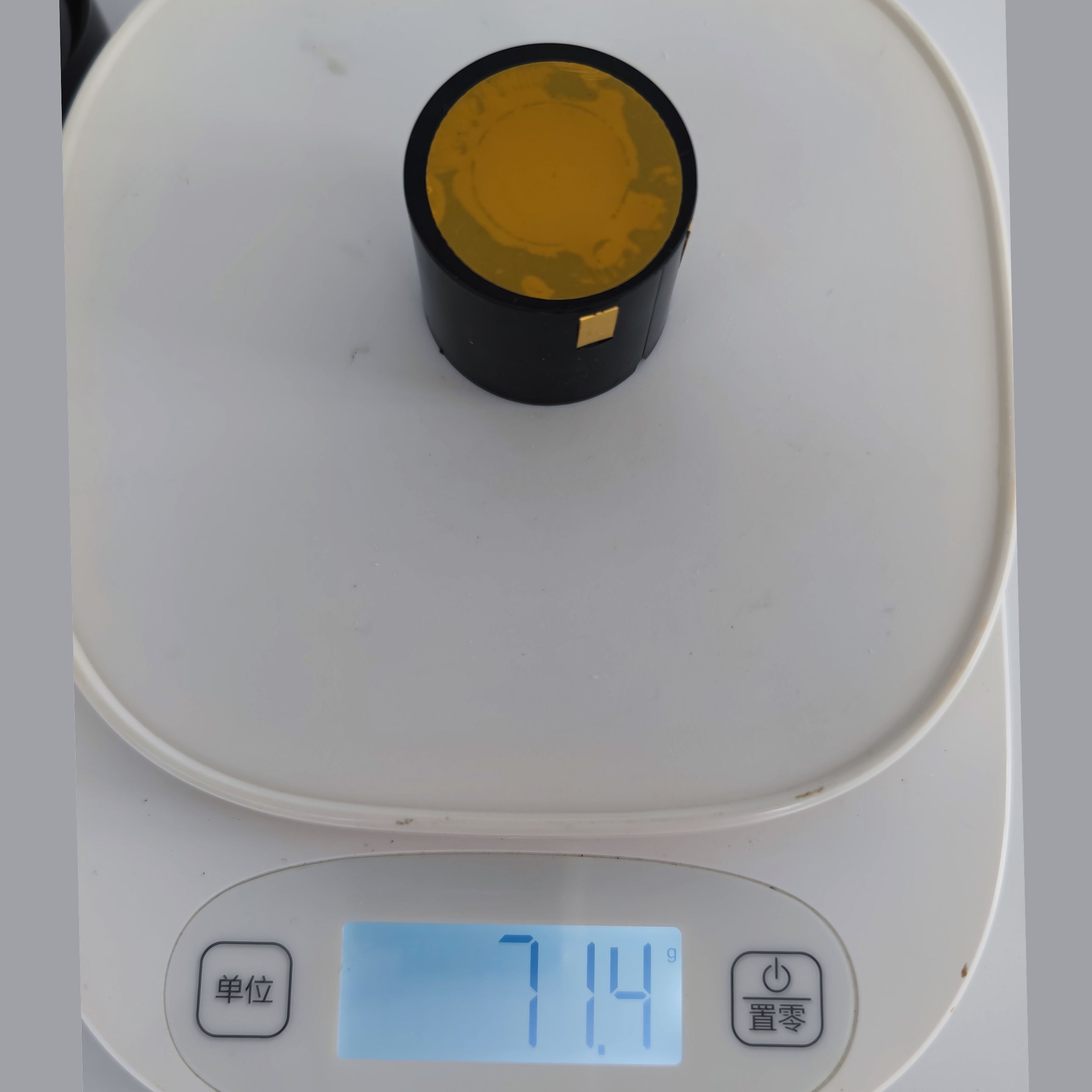

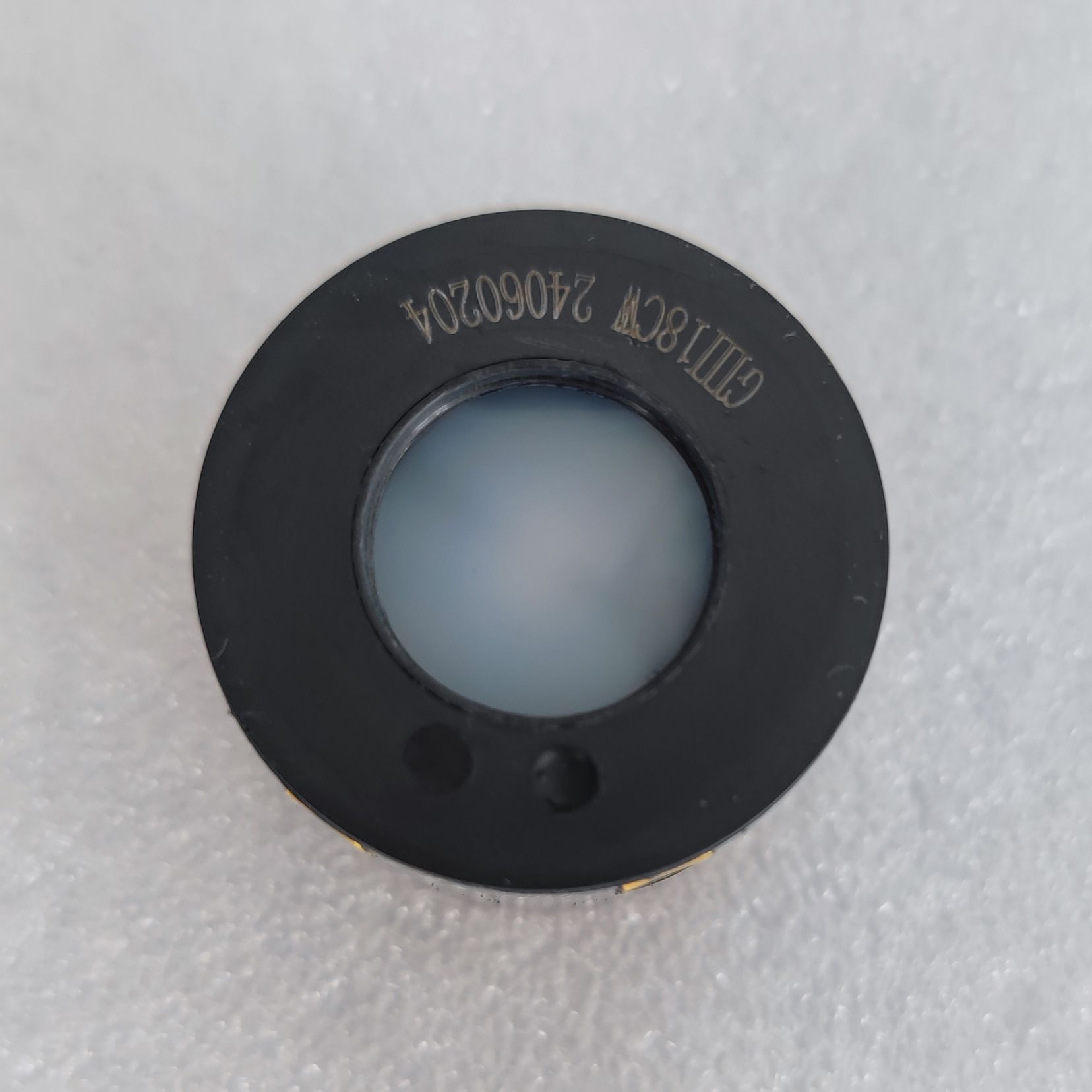

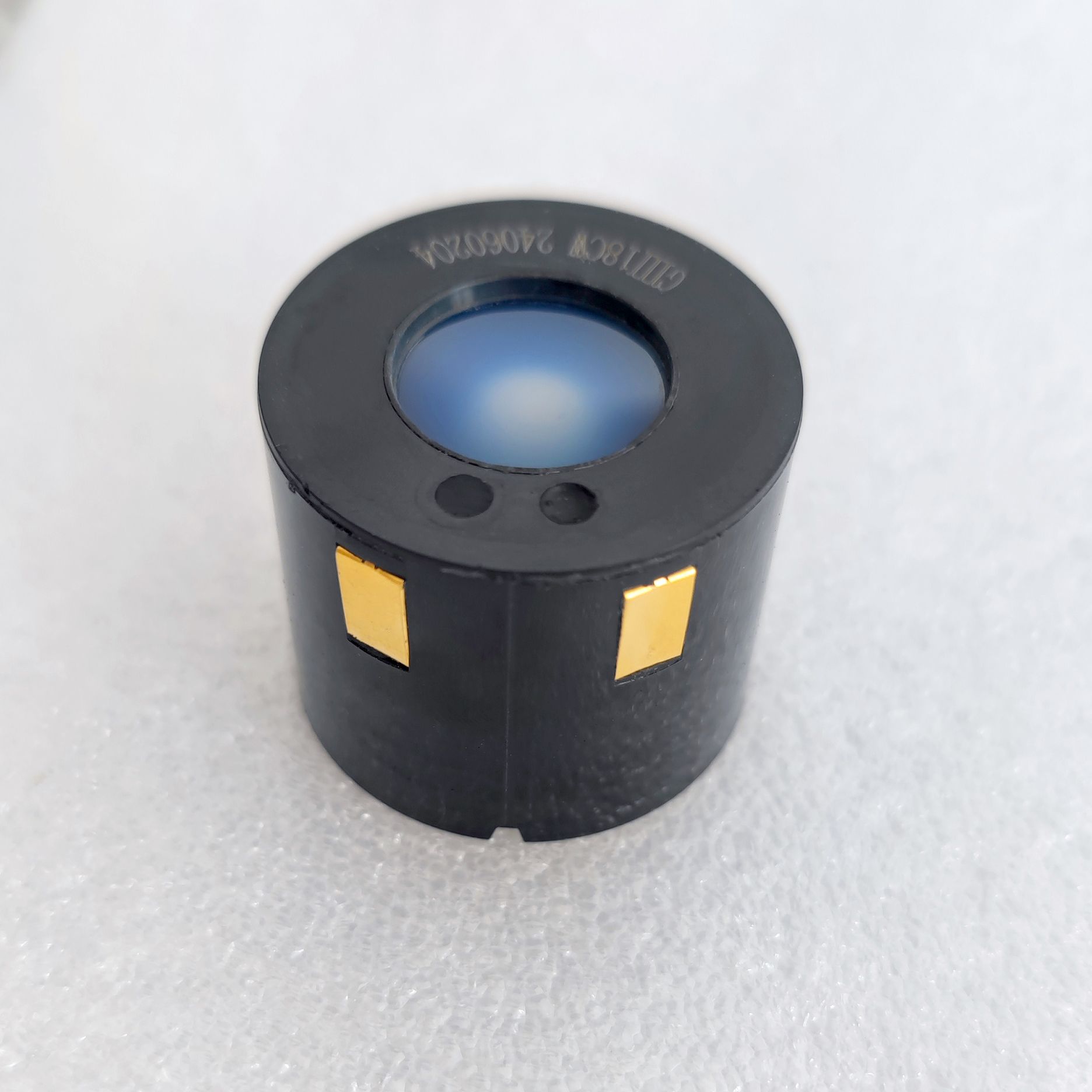

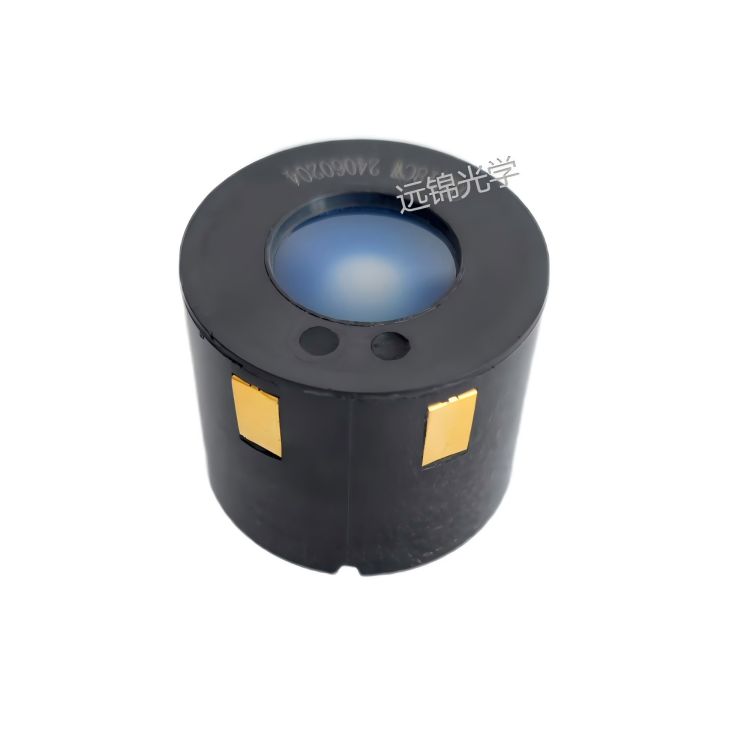

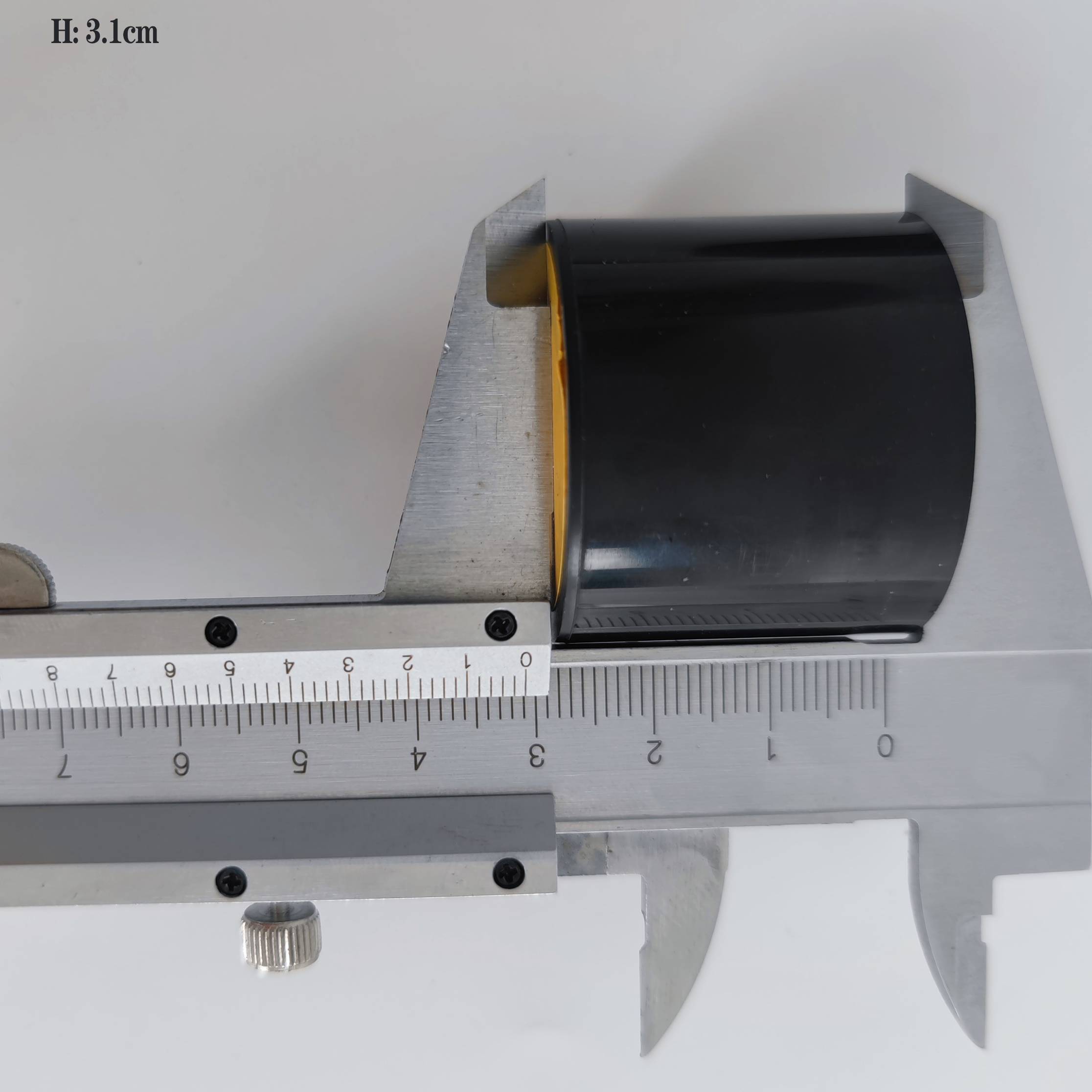

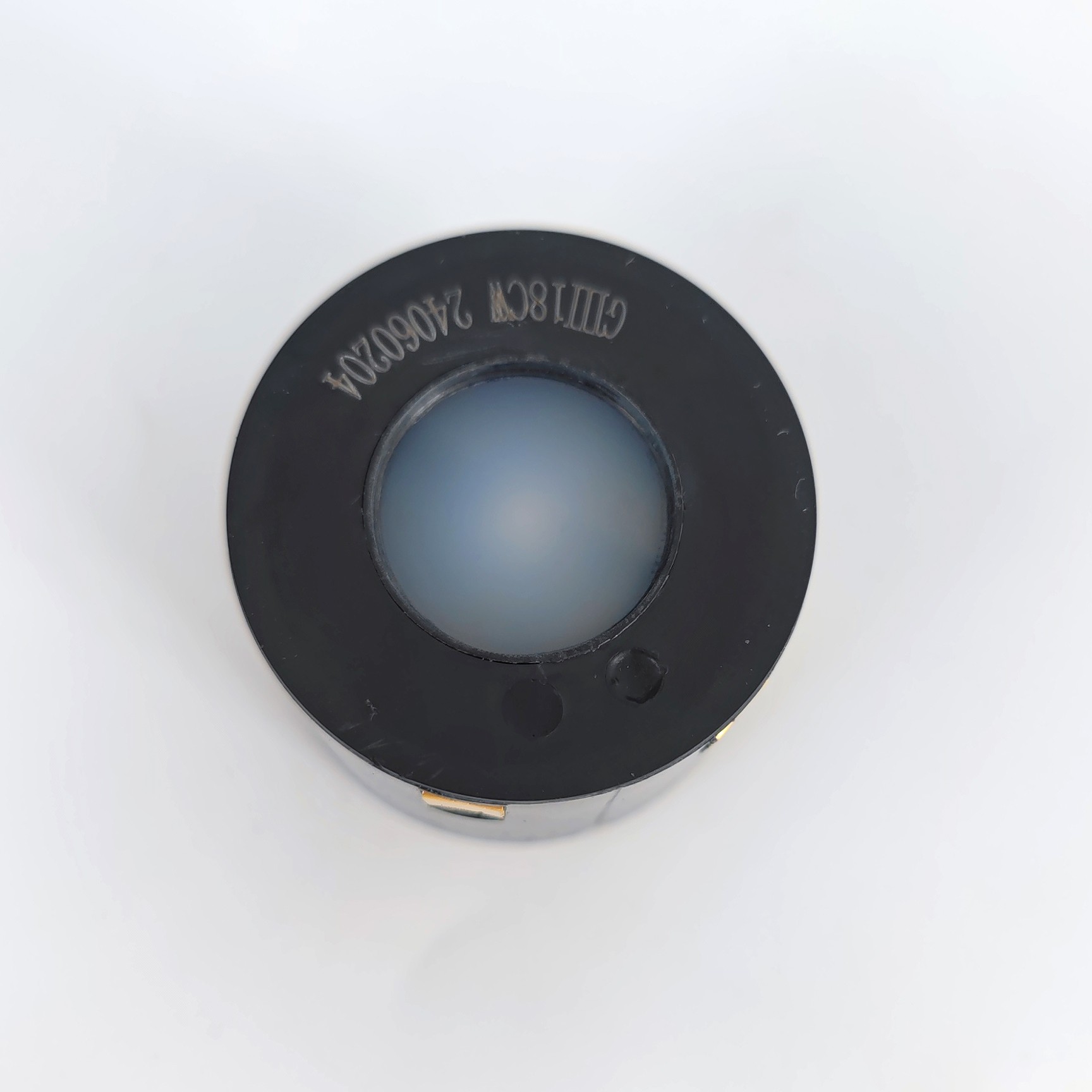

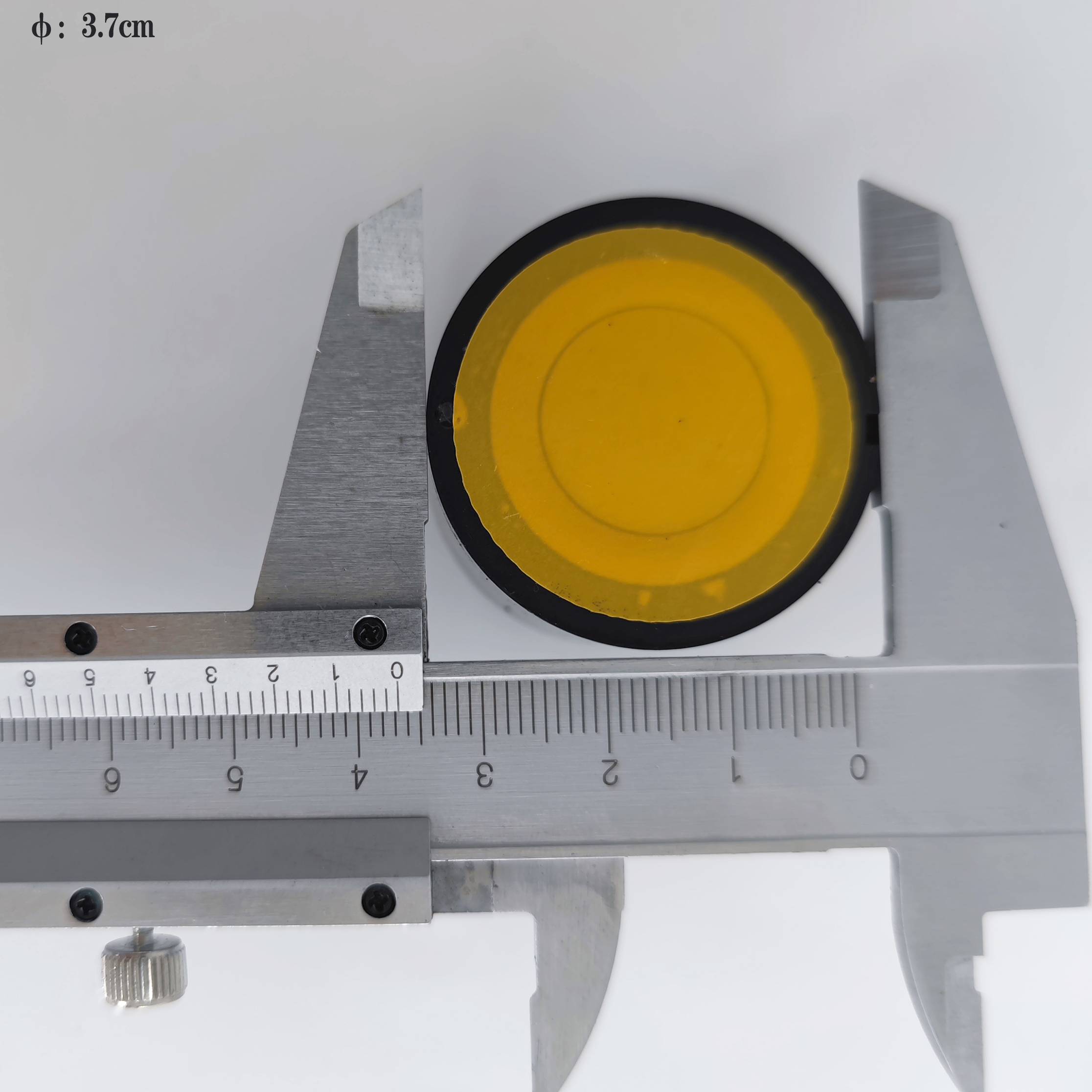

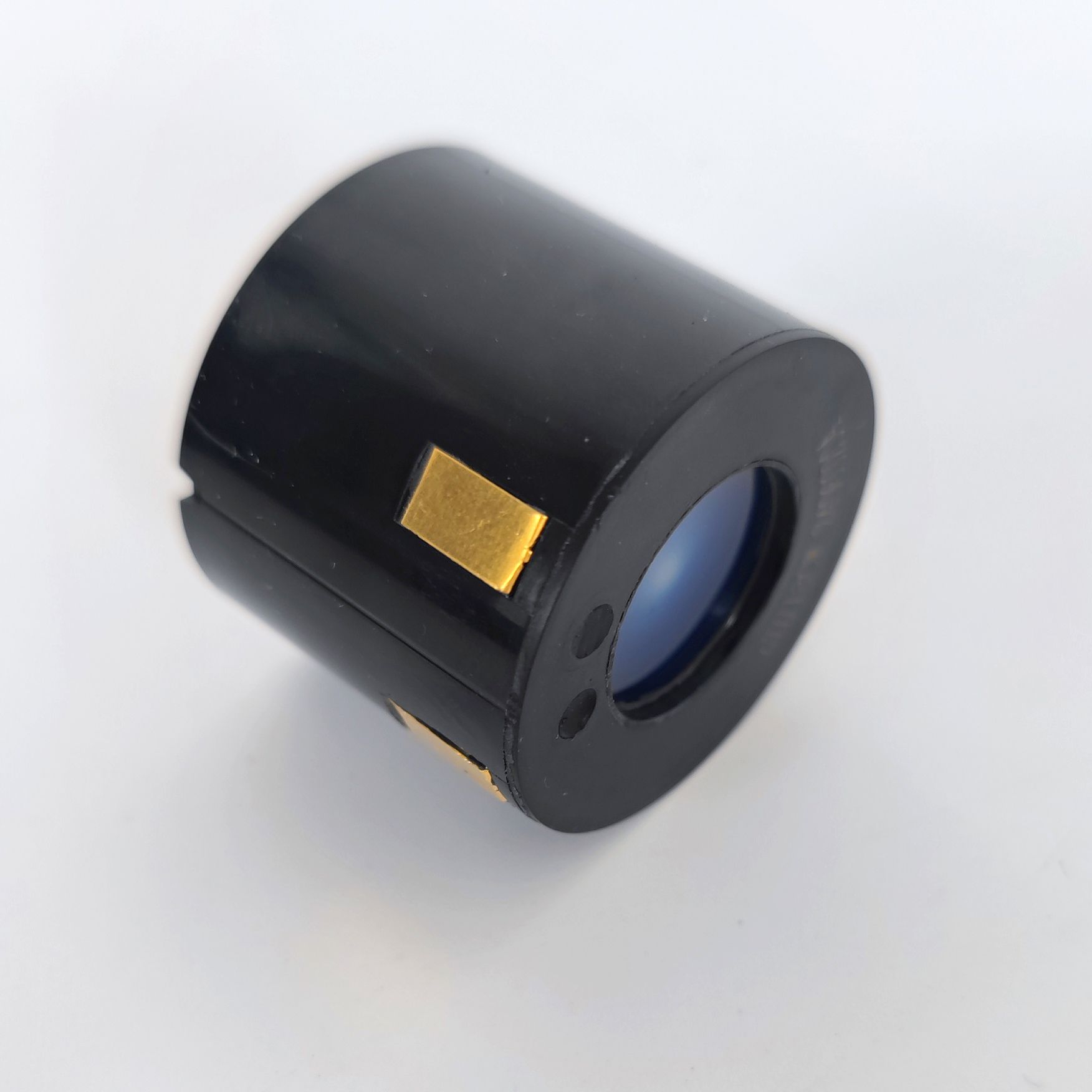

OUTLOOK image intensifier tube gen 3 is for gen 3 night vision goggles. This image intensifier tube gen 3 with auto-gating is Gaas tube with high quality. Image intensifier tube gen 3 is the core component of night vision goggles, which is mainly used to enhance weak light to provide clear images at night or in low light conditions. This is The MX10160 type image intensifier tube, which is designed for night vision applications. It converts low-light images into visible light, allowing users to see in dark conditions. OUTLOOK gen3 image intensifier is suitable for PVS-14, PVS-31, GPNVG-18 and ENVG-B gen 3 night vision goggles.
Structure and composition
1. Photocathode: Gallium arsenide (GaAs) photocathode is used, which has high sensitivity and good spectral response characteristics, and can effectively capture light in low-light environments.
2. Microchannel plate (MCP): With an anti-ion feedback film, it can prevent positive ion feedback and extend the life of the image tube, but it will reduce the signal-to-noise ratio and resolution to a certain extent.
3. Fluorescent screen: used to display enhanced images.
Performance characteristics
1. High sensitivity: Compared with the second-generation image intensifier, the sensitivity is increased by 4-8 times, and it can work in darker environments.
2. High resolution: It has a higher resolution and can provide clearer images.
3. Long life: Due to the use of long-life microchannel plates and fluorescent screens, its service life is more than 3 times longer than that of the second-generation image intensifier.
Application fields
1. Military field: Widely used in military night vision equipment, such as night vision devices, sights, etc., to improve night combat capabilities.
2. Civilian field: It can be used for security monitoring, night hunting, wildlife observation and other occasions that require observation in low-light environments.
1. Composition and function:
(1) Phosphor type: P43/P45;
(2) Auto-gated function;
(3) Automatic brightness control (ABC) function;
(4) Electrical connection method: double contact plate;;
(5) Output window: inverted spherical type (SR40).
2. Technical requirements：
(1) Integral sensitivity: ≥1200μA/lm;（1200-1900μA/lm）
(2) Ultimate resolution: ≥51lp/mm; （51-57lp/mm）
(3) Signal-to-noise ratio (@108μlx): ≥22; （22-28）
(4) Brightness gain: 11000cd/m²/lx~16000cd/m²/lx;
(5) Maximum output brightness: 4cd/m²~12cd/m²;
(6) Effective cathode diameter: ≥17.5mm;
gen 3 night vision goggles
